20000 Lumen Large Venue 3LCD Laser Projector for 3D Project Mapping

20000 Lumen Large Venue 3LCD Laser Projector for 3D Project Mapping

---

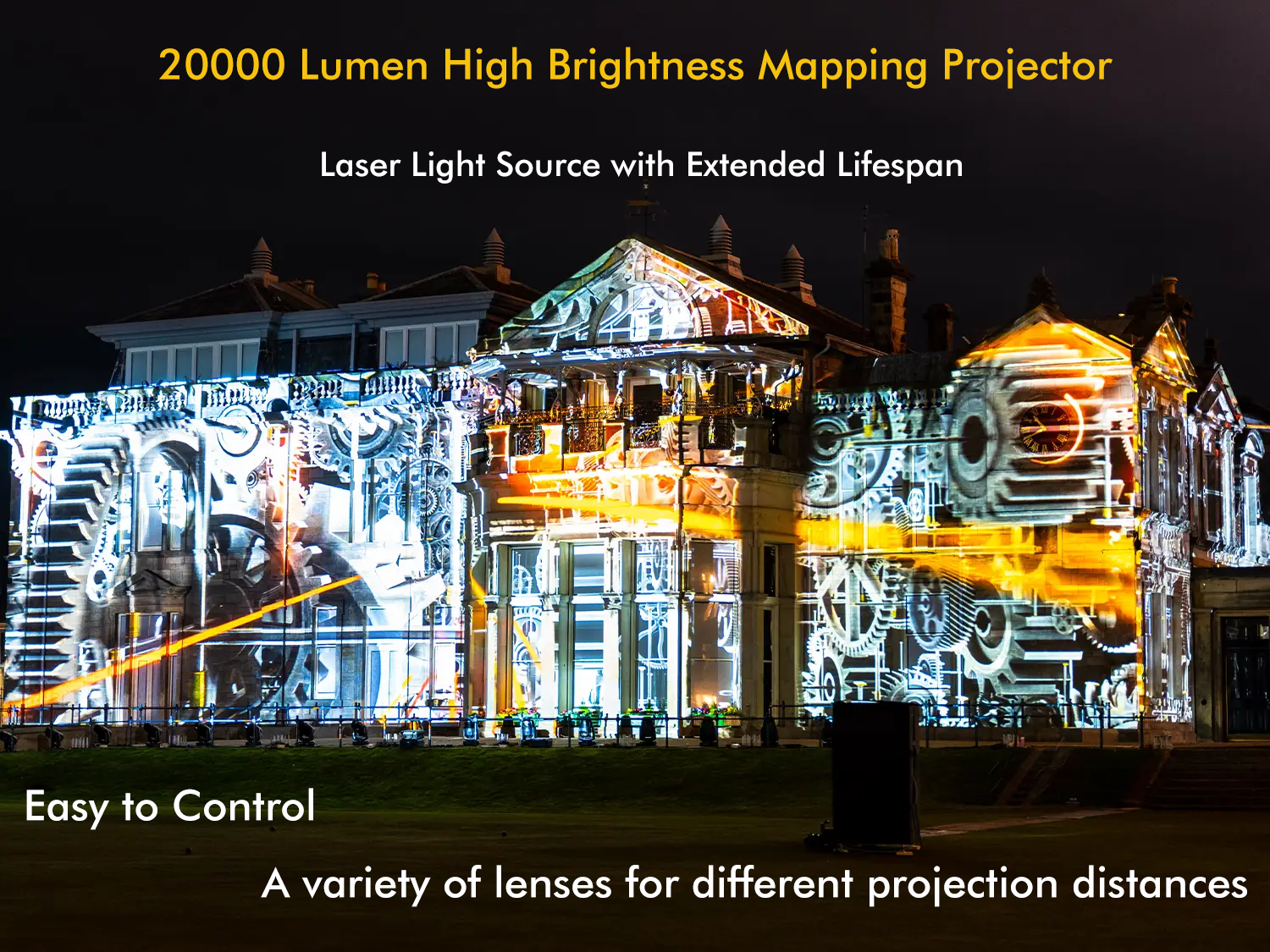

Experience stunning visual performance with this 20,000-lumen WUXGA laser projector, designed for professional 3D mapping, large-scale projections, and immersive experiences. Engineered for exceptional brightness, superior image clarity, and long-lasting performance, this projector is the ideal solution for outdoor projections, stage performances, exhibitions, and architectural mapping.

Key Features:

1. Ultra-High Brightness: 20,000 lumens ensure vivid, sharp images even in bright environments.
2. WUXGA Resolution (1920 × 1200): Delivers crisp, detailed visuals with excellent color accuracy.
3. Laser Light Source: Provides up to 20,000+ hours of maintenance-free operation.
4. Advanced 3D Mapping Compatibility: Supports projection mapping for dynamic and immersive displays.
5. High Contrast Ratio: Deep blacks and vibrant colors for enhanced image depth and realism.
6. Flexible Installation: 360-degree projection capabilities for creative positioning.
7. Edge Blending & Warping: Seamless multi-projector setups for large-scale projections.
8. Multiple Connectivity Options: HDMI, HDBaseT, and LAN for easy integration.
9. Dust-Resistant Design: Engineered for reliable performance in challenging environments.

Main Specification

---

Model#	MX-X20000U
Brightness
	Brightness(Lumen)	20,000
Overall Spec
Panel	Display Panel	3x1.0"
	Display Technology	Liquid Crystal Display
	Native Resolution	WUXGA (1920 x 1200)
Laser Lifetime	Normal mode	20000hrs
	ECO mode	30000hrs
Projection Lens (STD)	Len Model	MX-EG12ZLM
	Zoom/Focus	Motorized
	Throw Ratio (16:10)	1.24-2.01 @100inch
	F	1.8-2.24
	f	27.7-44.3mm
	Zoom Ratio	1.62
	Screen size	60-500 inch
	Lens Shift V	±65%
	Lens Shift H	±25%
CR	Contrast Ratio(Min)	3,000,000:1
Noise	Noise(dB)	Full:46db / Normal:44db / Eco1:43db / Eco2:42db
Uniformity	Uniformity	TYP:90%
AR	Aspect Ratio	Native:16:10 Compatible: 4:3/16:9/normal/16:6
Terminal(I/O port)
Input	VGA	*1
	HDMI 1.4(IN)	*2
	USB-A	*1
	USB-B	*1 (Display)
	RJ45	*1 (Display)
	DVI-D	*1
	HD BaseT	*1
	Audio in(mini jack,3.5mm)	*1 (VGA/DVI-D share)
	DMX512	*1
Output	HDMI 1.4(OUT)	*1
	Audio out (mini-jack,3.5mm)	*1
Control	RS232C (Input)	*1
	RS232C (Output)	*1
	Wired Remote(IN)	*1
	Wired Remote(OUT)	*1
Other Functions
Keystone	Keystone Correction	V: ±30° H:±30° Pincushion/Barrel Correction 6 Corner Geometry correction Grid ImageTune correction
OSD	Languages	26 languages: English, German, French, Italian, Spanish, Polish, Swedish, Dutch, Portuguese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazak, Vietnamese, Thai, Farsi
LAN Control	LAN Control-RoomView (Crestron)	Yes
	LAN Control-AMX Discovery	Yes
	LAN Control-PJ Link	Yes
Display Resolution	Computer Signal Input	VGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,4K@30Hz
Others	360° projection	360° Install
	Edge Blending	Yes
	Adjustable brightness	Yes
Dimension&Weight
	Product Size (WxHxD mm)	599X240.2X493.8mm (not including lens)
	Net. Weight (KG)	28.9Kg (not including lens)
Accessory
	Manual Languages	Chinese, English
	Standard Accessories	Power cord (3m, Black), Remote control

Different Lens Suitable for Different Projection Distance

---

Model#		MX-EG05ZLM	MX-EG06ZLM	MX-EG08ZLM	MX-EG12ZLM	MX-EG20ZL	OL-EG39ZLM
Image circle		Φ34.6	Φ35.5	Φ37.9	Φ37.9	Φ37.9	Φ37.9
Zoom/Focus		Motorized	Motorized	Motorized	Motorized	Motorized	Motorized
F# (Wide-Tele)		1.85-2.20	1.84-2.25	1.80-2.24	1.80-2.24	1.84-2.58	1.85-2.42(TBD)
f(mm)		12.0-14.6	14.4-19.1	19.0-27.6	27.7-44.3	43.8-86.0	86.8-163.5(TBD)
Throw Ratio (16:10)		0.53-0.65	0.65-0.87	0.86-1.25	1.24-2.01	1.98-3.95	3.95-7.50(TBD)
Zoom Ratio		1.23	1.34	1.45	1.62	1.99	1.90(TBD)
Lens shift	H	±20%	±20%	±25%	±25%	±25%	±25%
	V	±50%	±55%	±65%	±65%	±65%	±65%
Screen Size		60-500inch	60-500inch	60-500inch	60-500inch	60-500inch	60-500inch
