12000 Lumen Laser Projector For 3D Building Projection Mapping

Brand Name : SMX

Model Number : MX-X12000U

Certification : ISO,CE

Place of Origin : China

MOQ : 1pc

Payment Terms : T/T

Supply Ability : 10000pcs/Monthly

Delivery Time : 5-20days

Packaging Details : Carton

Product Name : Large Venue LCD Laser Projector

Birghtness : 1,2000 lumens

Dynamic Contrast Ratio : 100,000:1

Display Type : LCD

Projection Light Source : Laser

Light Source Lifespan : 20,000 hours

Native Resolution : WUXGA (1920*1200)

Len Type : Zoom Lens

Throw Ratio : 1.46-2.95

Zoom Ratio : 2

Zoom/Focus : Manual

Lens Shift : V: -10%~+50% , H: ±20%

Projection Size : 40-500 inch

Aspect Ratio : 16:10

Keystone Correction : V: ±30°, H: ±30°, 4 Corner, 6 Corner

Edge Blending : Yes

Contact Now

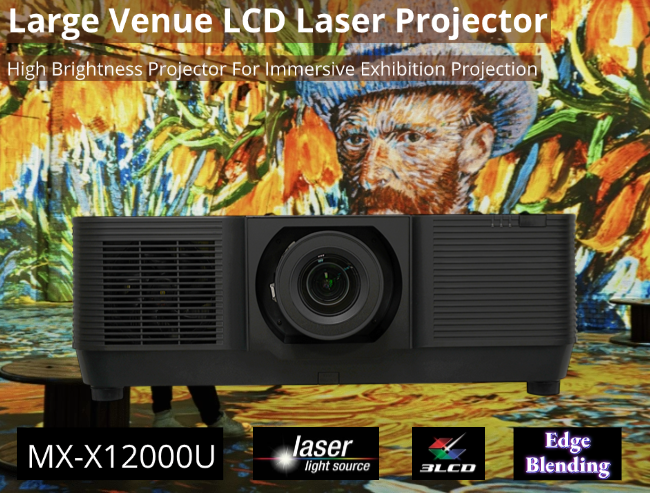

SMX Large-venue LCD Laser Projector WUXGA 12000 Lumen

The SMX MX-X12000U is a 12000 lumen 3LCD laser engineering projector. The MX-X12000U Engineering Projector is designed for complicated and specialized applications. Typically, it has high brightness, resolution, and flexibility to accommodate a wide variety of circumstances. It adopts LCD technology with a color depth of 1.07 billion colors.

12000 Lumen Laser Projector For 3D Building Projection Mapping

Main Features:

  • 12,000 Lumen High Brightness
  • WUXGA (1920*1200) native resolution
  • Multi-interface, dual HDMI
  • Installation flexibility advanced keystone correction
  • 20,000 Hours ultra-long life laser light source
  • 100000:1 High contrast
  • 360° Projection
  • Support edge blending
  • Support 4K signal input

Application Area:

  • Large Venue Projection
  • Immersive Experience
  • Hologram Projection
  • 3D Mapping & Buliding Projection
  • Exhibition&Museum

Lens Shift

Lens shift provides flexibility and convenience, allowing users to adjust the projected image in a variety of installation conditions, ensuring the best visual effects and audience experience.

12000 Lumen Laser Projector For 3D Building Projection Mapping

360° Projection

It can be adjusted according to site and needs to adapt to different environments.

12000 Lumen Laser Projector For 3D Building Projection Mapping

WUXGA Resolution

12000 Lumen Laser Projector For 3D Building Projection Mapping

High Contrast

12000 Lumen Laser Projector For 3D Building Projection Mapping

Edge Blending

12000 Lumen Laser Projector For 3D Building Projection Mapping

Motorized Zoom and Focus

Simplifies installation and operation by easily adjusting the lens through the remote control.

12000 Lumen Laser Projector For 3D Building Projection Mapping

12000 Lumen Laser Projector For 3D Building Projection Mapping

12000 Lumen Laser Projector For 3D Building Projection Mapping

Specification

　Model No. MX-X12000U
Brightness
　 Brightness
( Ansi Lumens )		 12000lumen
Light source Laser
Overall Spec
Panel Display Panel 3x0.76"
Display Technology Liquid Crystal Display
Native Resolution WUXGA (1920 x 1200)
Light source
Lifetime		 Normal mode 20000hrs
ECO mode 20000hrs
Projection Lens Len Type Zoom Lens
Zoom/Focus Manual(Standard Len)
Throw Ratio(16:10) 1.46-2.95
F#(Wide-Tele) 1.7~2.37
f(mm) 24.4-48.6
Zoom Ratio 2
Weight Approx 0.8kg
Lens Shift V +50%,-10%
Lens Shift H ±20%
CR Contrast Ratio(Min) 100000:1
Noise Noise(dB) Normal(90%): 35dB
ECO1(75% ): 32dB
ECO2(45% ): 32dB
AR Aspect Ratio Native:16:10
Compatible: 4:3/16:9/normal
Terminal(I/O port)
Input VGA *1
HDMI 1.4(IN) *2
USB-A *1 (5V/1.5A)
USB-B *1 (Display)
RJ45 *1 (Display)
DVI-D *1
HD BaseT *1
HD-SDI(3G-SDI) Optional
Audio in
(mini jack,3.5mm)		 *1 (VGA/DVI-D share)
Output VGA *1
HDMI 1.4(OUT) *1
Audio out
(mini-jack,3.5mm)		 *1
Control RS232 *1
RJ45 *1 (Control)
USB-B *1 (For upgrade)
Wired Remote(IN) *1
Wired Remote(OUT) *1
Other Functions
Keystone Keystone Correction V: ±30°
H: ±30°
Pincushion/Barrel Correction
6 Corner Geometry correction
Grid ImageTune correction
OSD Languages 26 languages: English, German, French, Italian, Spanish, Polish, Swedish, Dutch, Portuguese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazak, Vietnamese, Thai, Farsi
LAN Control LAN Control-RoomView
(Crestron)		 Yes
LAN Control-AMX Discovery Yes
LAN Control-PJ Link Yes
Display Resolution Computer Signal Input VGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,4K@30Hz
Others 360° projection 360° Omni bearing installation
Edge Blending Yes
Dimension&Weight
　 MAX Dimensions
(WxHxD mm)		 600*218*503
Net. Weight (KG) ~25kg
Accessory
　 Manual Languages Chinese, English
Standard Accessories Power cord(3m,Black), Remote control

12000 Lumen Laser Projector For 3D Building Projection Mapping
